Packaging Details :Flight case, 6-8pcs cabinets in one flight case.
Application :Stage events
Pixel Pitch :2.97mm
LED Encapsulation :Nationstar
Brightness :1000 nits
Refresh rate :3840Hz
Cabinet size :500x500mm
Product name :P2.97 led screen
Control system :Nova
Certificate :CE ROHS FCC
Contact Now
Nationstar Led Lamp SMD1515 Stage Led Video Wall Screen Display For Big Concert
Introduction:

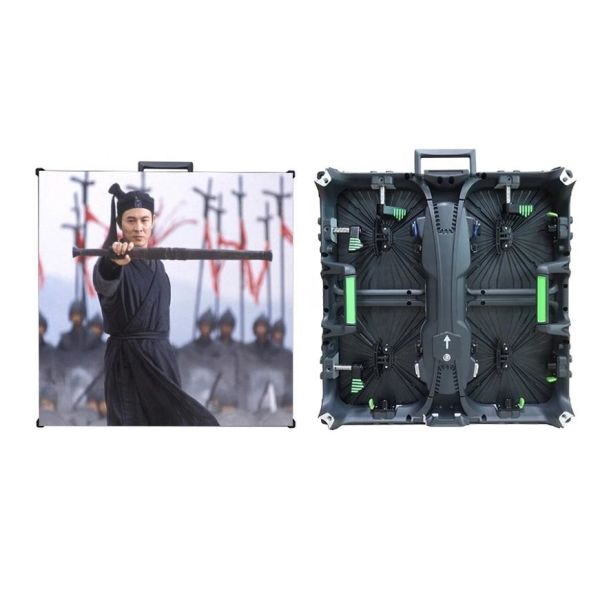

Standard 500x500mm, 500x1000mm cabinet size, Silan driving IC, refresh rate reach to 3840HZ. Cabinet adopts curve fast locks, can realize the arc splicing effect of 5-10 degrees of internal radian and 5 degrees of external radian. Stable cabinet structure, no deformation, the contact surface between cabinet is treated by anodic oxidation, which is resistant to collision and friction, satisfying multiple installation and disassembly in rental events.
2.High-precision die-cast aluminum cabinet, seamless unit box.
3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4.Total hard connection, easy to take off the power supply and receiving card.
5.Module with touchable back screw, uncessary to prepare tool, easy to fix and take off modules by hand.
6.Corners with small protectors, protect pixel while moving.
Features:
1. High refresh rate, >3840HZ, which let the picture is vivider
2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.
3. Convenient maintainance --- module front & rear service
4. Independent power supply box without wire
5. Support curve connection --- ±2.5°&5° concave & converse connection
Specifications:
Item
Parameter
Module specifications
Mode
P2.604
P2.97
P3.91
P3.91
Module size
250*250
250*250
250*250
250*250
Module pixel
96*96
84*84
64*64
64*64
Scan
1/32
1/28
1/16
1/16
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
LED
SMD1515
SMD1515
SMD2121
SMD2121
Max power consumption (W/piece)
40W
40W
40W
40W
Mask
Have
Have
Have
Have
Main Specifications
Cabinet size
500*500
500*500
500*500
500*1000
Cabinet pixel
192*192
168*168
128*128
128*256
Density (dot/m2)
147456
112896
65536
65536
Brightness(cd/m2)
500-1000
500-1000
500-1000
500-1000
Max power consumption (W/piece)
160W
160W
160W
320W
Avg power consumption (W/piece)
50W
50W
50W
100W
Cabinet weight(KG)
7.5KG
7.5KG
7.5KG
13.6KG
Cabinet material
Die-cast aluminum
IP grade
IP45
IP45
IP45
IP45
Gray level
16 bit
16 bit
16 bit
16 bit
Fresh rate
3840HZ
3840HZ
3840HZ
3840HZ
Best viewing distance
3M
3M
4M
4M
Power(V)
AC110-220V
Working temperature
-20℃-50℃
